Embedded webpage in iTop portal

name:
Embedded webpage in iTop portal
description:
This extension allows to embed an external webpage in iTop portal.
version:
1.1.1
release:
2020-03-20
itop-version-min:
2.3.0
Github:
https://github.com/Combodo/itop-portal-url-brick
code:
itop-portal-url-brick
state:
stable
diffusion:
Client Store + Hub Wiki
php-version-max:
PHP 8.0

Features

This extension is extending capabilities for Portal developers. Alone, it does not change anything visible on your iTop Portal.

  • Embeds a webpage in the portal.
  • Fullscreen option for seemlessly integration.
  • Callback for extra URL parameters or snippet execution (eg. Set a cookie).

Revision History

Version Release Date Comments
2020-03-20 1.1.1 Fix autoloader being load twice during compilation
2020-03-15 1.1.0 Compatibility with iTop 2.7.0: migration from Silex to Symphony
2018-01-23 1.0.3 Add new parameter url_parameters_callback
2017-05-24 1.0.2 Compatibility with iTop 2.3+ instead of 2.4+
2017-05-23 1.0.1 Add brick CSS file to the portal via XML delta
2017-05-22 1.0.0 First version

Limitations

  • In most browsers, embedding an unsecured webpage (http) within a secured iTop (https) will not work!
Be cautious, some websites such as GitHub refuses to be displayed within an iframe, and no explicit error message is displayed.

Requirements

  • iTop 2.3 or later

Installation

Use the Standard installation process for this extension.

Configuration

You can override the URL define in the portal brick XML by a configuration parameter. This allows easy maintenance without having to run a setup.

In the configuration file > module settings, add an entry like this:

Configuration file
  'itop-portal' => array(  // Should be changed to your portal ID
    'bricks' => array(
      'url-to-combodo-website' => array(  // Should be changed to your brick ID
        'url' => 'https://www.combodo.com',
      ),
    ),
  ),

If used on a new portal

By default the brick will try to add its own CSS file to the default itop-portal portal. If you want the brick to be part of another portal instance, you must manually add the CSS. To do so, just copy the <theme> part of the extension's datamodel.

itop_design / module_designs
    <module_design id="my-itop-portal" xsi:type="portal" _delta="define">
      <properties>
        <themes>
           <theme id="url-css">itop-portal-url-brick/asset/css/urlbrick.css</theme>
        </themes>
      </properties>
      ...
    </module_design>

Usage

Install this extension to enable this type of brick on your portals. Then, manually add an instance (or more) of the URL brick in your portal's configuration like any other bricks.

Below is the documentation of the URL brick's specific tags.

Search in the XML:
Tag Usage Description
<brick id="UNIQUE_ID" xsi:type="Combodo\iTop\Portal\Brick\UrlBrick"> zero or more Embedded webpage brick.
<subtitle>Some text under the title</subtitle> optional Text or dictionary entry to be displayed under the brick title when "fullscreen" option is set to false.
<fullscreen>false</fullscreen> optional Defines if the webpage is displayed with its title and subtitle or fills all the page. Available values are true|false. Default is false.
<url>//www.combodo.com</url> mandatory URL of the webpage to display. Note: Omitting the "http:" will make the iframe automatically use the same protocol "http|https" as the parent web page. This is mostly necessary when the server is forced to https.
<url_parameters_callback><![CDATA[\Ticket::FooMethod]]></url_parameters_callback> optional FQN of a static method (without parenthesis) that returns an array of extra parameters (param => value) to add to the URL. Returned parameters will be url-encoded automatically.

Example

Portal configuration

<?xml version="1.0" encoding="UTF-8"?>
<itop_design xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="1.3">
    <module_designs>
        <module_design id="itop-portal" xsi:type="portal">
            <bricks>
                <!-- Exemple for a UrlBrick -->
                <brick id="url-to-combodo-website" xsi:type="Combodo\iTop\Portal\Brick\UrlBrick" _delta="define">
                    <rank>
                        <default>90</default>
                    </rank>
                    <width>6</width>
                    <title>
                        <default>www.combodo.com</default>
                    </title>
                    <description>
                        <![CDATA[ <p>Combodo website</p> ]]>
                    </description>
                    <decoration_class>
                        <default>fa fa-globe fa-2x</default>
                    </decoration_class>
                    <!-- Text or dictionary entry to be displayed uneder the brick title -->
                    <!--<subtitle/>-->
                    <!-- URL of the webpage to display. Note: Omitting the "http:" will make the iframe automatically use the same protocol "http|https" as the parent web page. This is mostly necessary when the server is forced to https. -->
                    <url>//wiki.openitop.org</url>
                    <!-- FQN of a static method (without parenthesis) that returns an array of extra parameters (param => value) to add to the URL. -->
                    <!-- Returned parameters will be url-encoded automatically. -->
                    <!-- Note: Extra code can be done there like setting cookies or so. -->
                    <!--<url_parameters_callback><![CDATA[\Ticket::FooMethod]]></url_parameters_callback>-->
                    <!-- Fullscreen true|false. Defines if the webpage is displayed with its title and subtitle or fills all the page. Default is false. -->
                    <!--<fullscreen>false</fullscreen>-->
                </brick>
            </bricks>
        </module_design>
    </module_designs>
</itop_design>

Callback method

Optionally, you can define a callback method to add parameters to the URL

class Ticket
{
    public static function FooMethod()
    {
        // Should return an array of parameters to add o the url (can be empty or null though).
        $aParams = array();

        // Exemple: Manually creating parameters
        //$aParams['param1'] = 'foo';
        //$aParams['param2'] = 'bar';

        // Exemple: Doing something that has nothing to do with the actual URL (like setting a cookie)
        //setcookie('MyCookieName', 'MyCookieValue');

        $aParams = array(
            'search' => 'foo',
            'orderby' => 'date',
        );

        return $aParams;
    }
}

Use cases

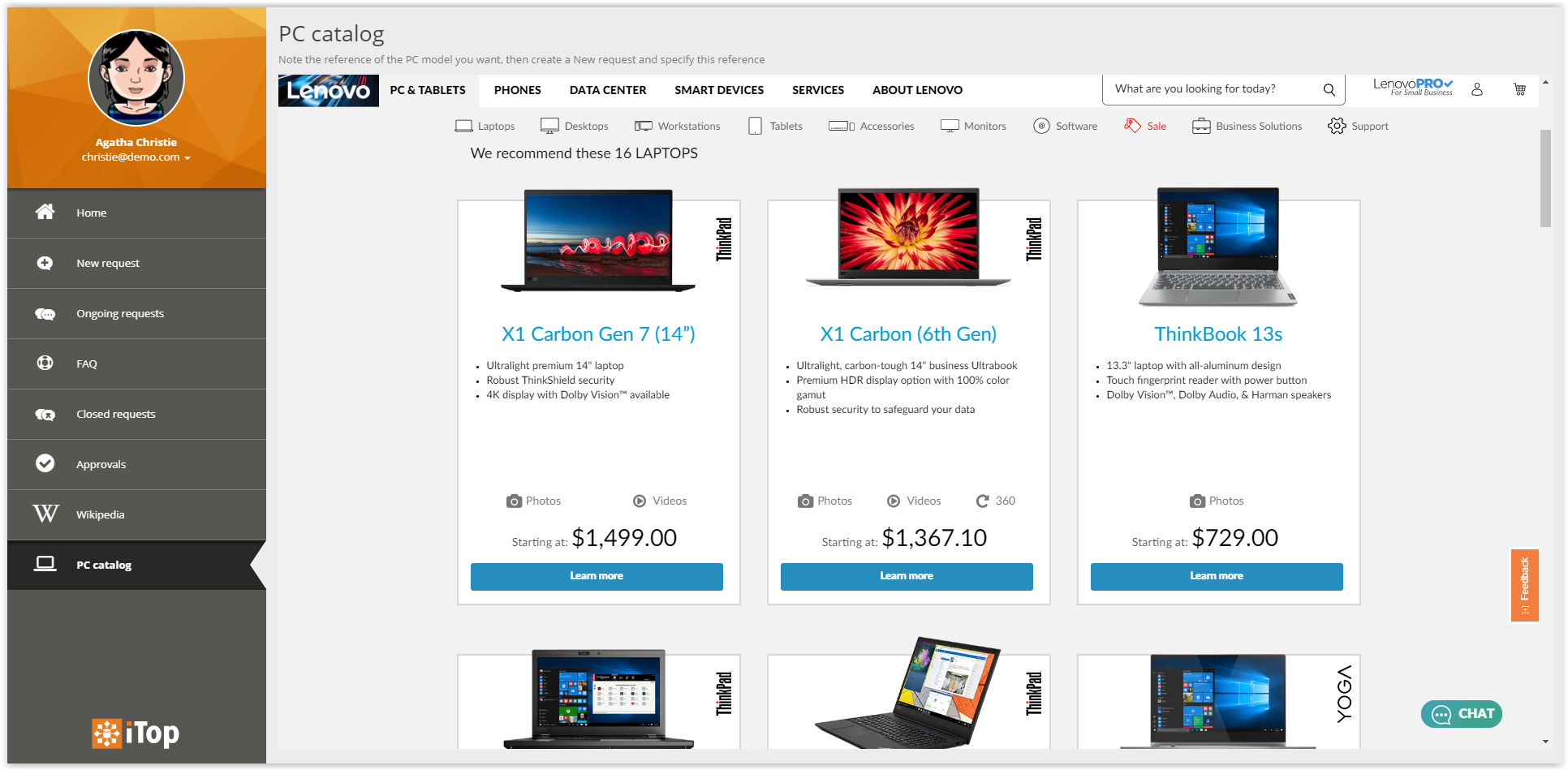

1. Display a partner website with additional informations

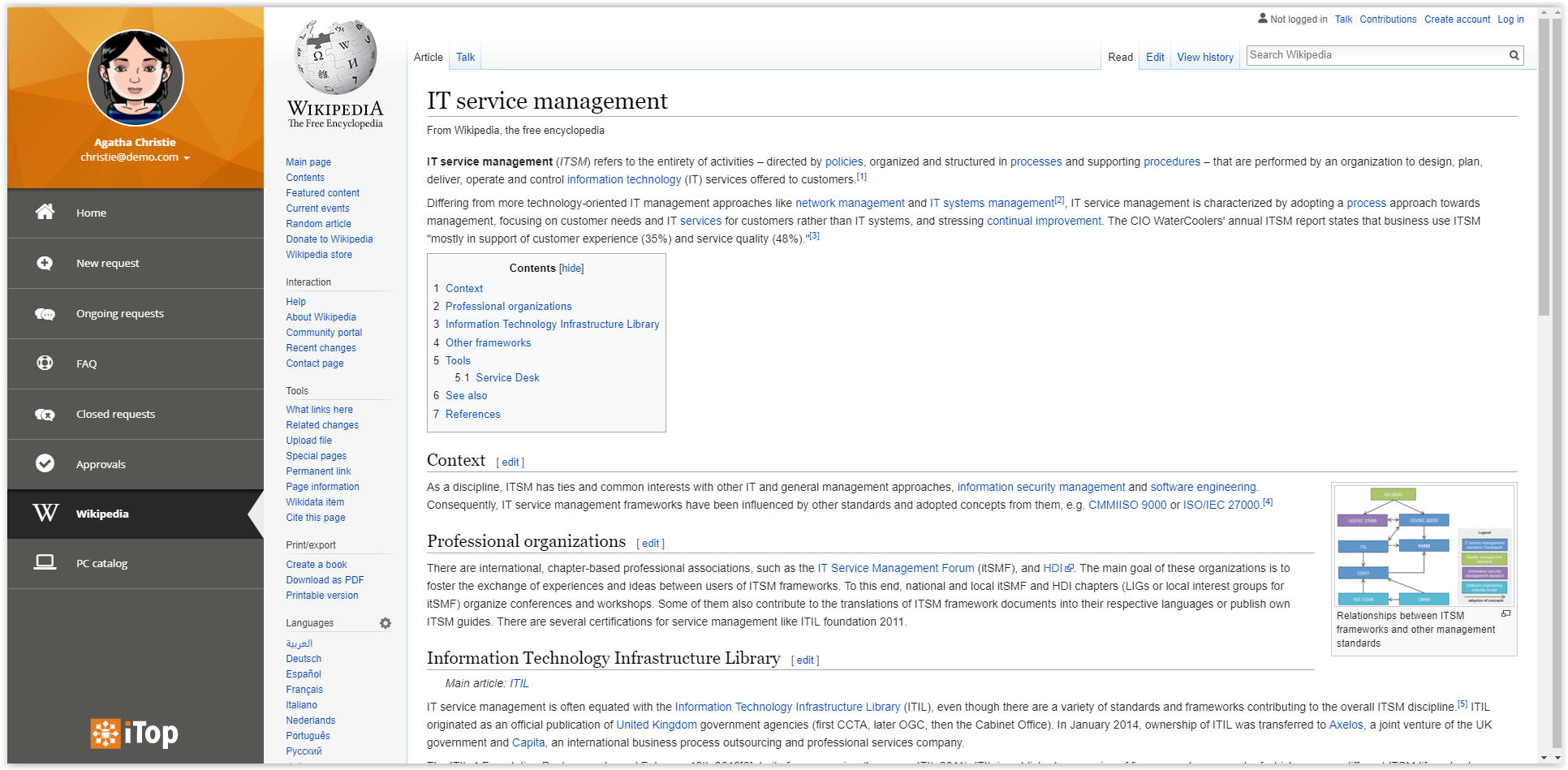

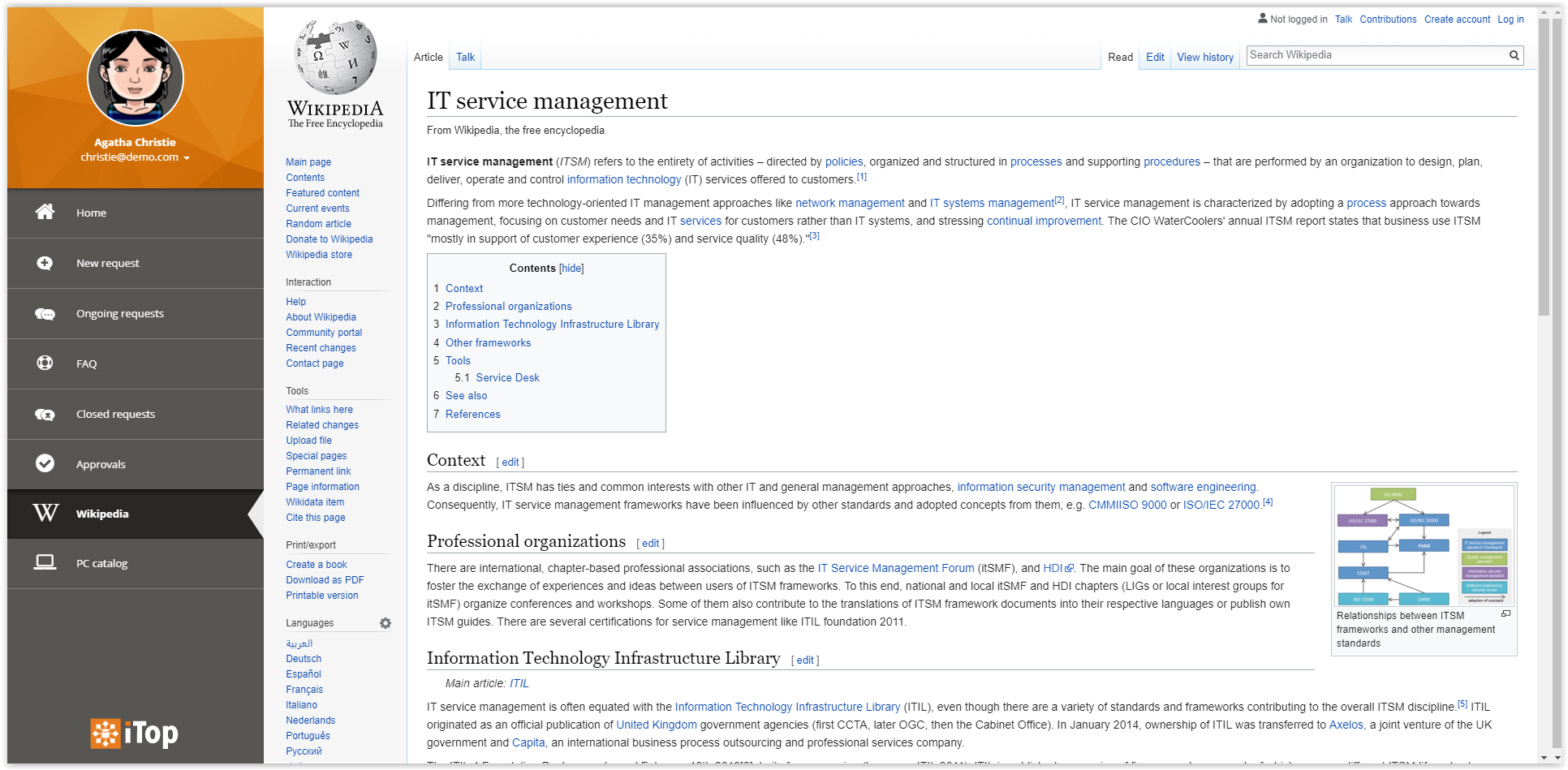

2. Integrate the wiki as if it was part of the portal (fullscreen)

Questions & Answers

Q: Frame content is not displayed, and in the browser console I've got a “X-Frame-Options” error
A: Check the http header sent by the URL you want to integrate.
If the X-Frame-Options header sent by the remote website, does not allow to integrate the web page within iTop, there is nothing you can do on iTop side.
If that Web server is under your control, then ask the Web server administrator to change its configuration to allow such integration. See MDN reference
