Attributes visual beautifier

name:
Attributes visual beautifier
description:
Bootstraps your iTop with some nice status attributes
version:
1.0.0
release:
2020-04-14
itop-version-min:
2.0
code:
combodo-attributes-visual-beautifier
state:
Stable

This extension bootstraps your iTop with some nice status attributes. 🚀

Features

Make the status field value more visible and much easier to be understood thanks to colors. By default UserRequest and Contact classes have their status values colored But other classes can be added.

Color palette

We based the default colors on what seems to be a general standard for UX:

Neutral states => Blue (New, assigned, re-assigned, dispatched, ...)
  Waiting states => Orange (Pending, waiting for approval)
  Success states => Green (Accepted, resolved)
  Failure states => Red (Rejected, escalated TTO/TTR)
  Frozen states => Grey (Closed)

Note: Custom states will be rendered as neutral states by default.

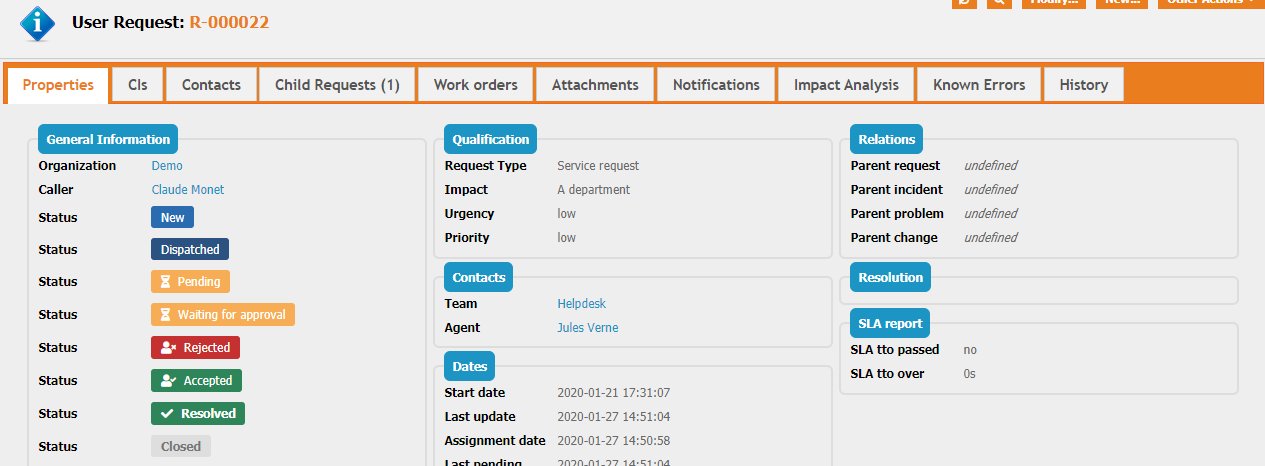

Above example of a UserRequest (mockup with all state values)

Revision History

Version Release Date Comments
1.0.0 2020-04-14 First version

Limitations

This extension can only highlights one field per class and the field values must not start with a number.
This extension is designed for iTop 2.7, it may not work as-is with iTop version 3.0.0 and above, but a similar behavior will be possible, after some migration work.

Requirements

Requires iTop 2.7

Installation

Use the Standard installation process for this extension.

Configuration

Configuration for this extension, like colors, status and objects in scope of the highlighting, can be done in XML. For Combodo's Customer it can easily be done using the ITSM Designer, editing the Module Parameter: combodo-attributes-visual-beautifier.

Editing those parameters in the Configuration file is also possible but not recommended as it won't be compatible with future version of that extension and for Combodo's customers it will ruin our capability to help you keeping your settings while moving to iTop 3.0+

Usage

This extension only changes a little the way the objects with a status field are displayed in the Console and the Portal, in list mode and in the details view

Portal screenshots

Here is the way an object with a status field would be displayed in the user Portal:

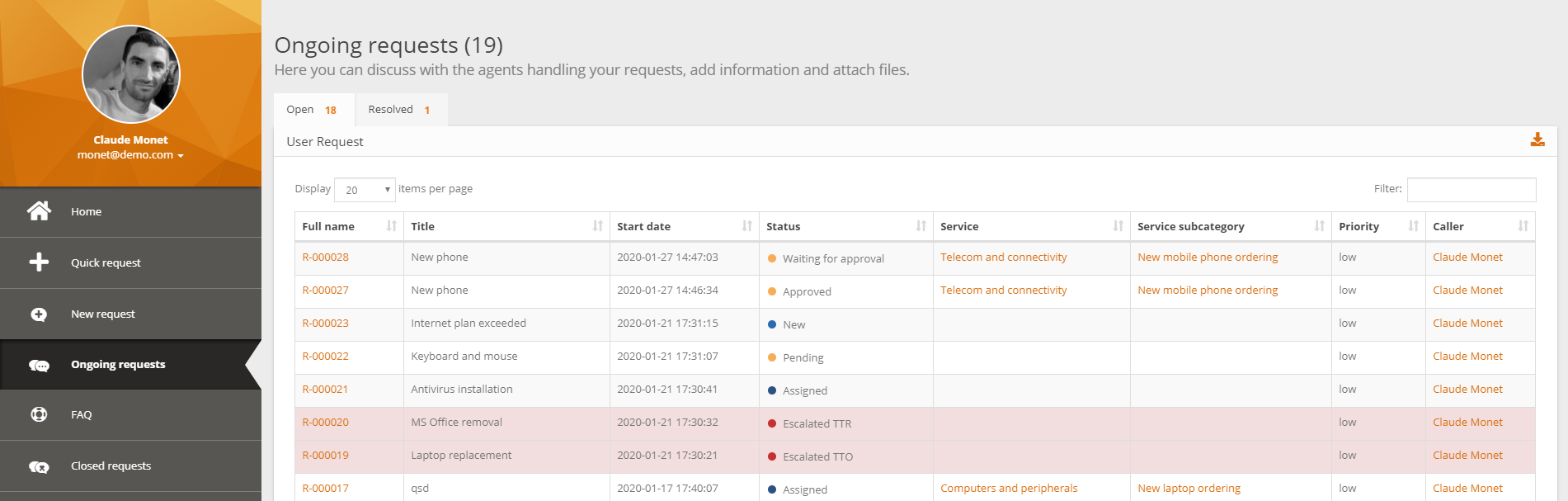

Objects list:

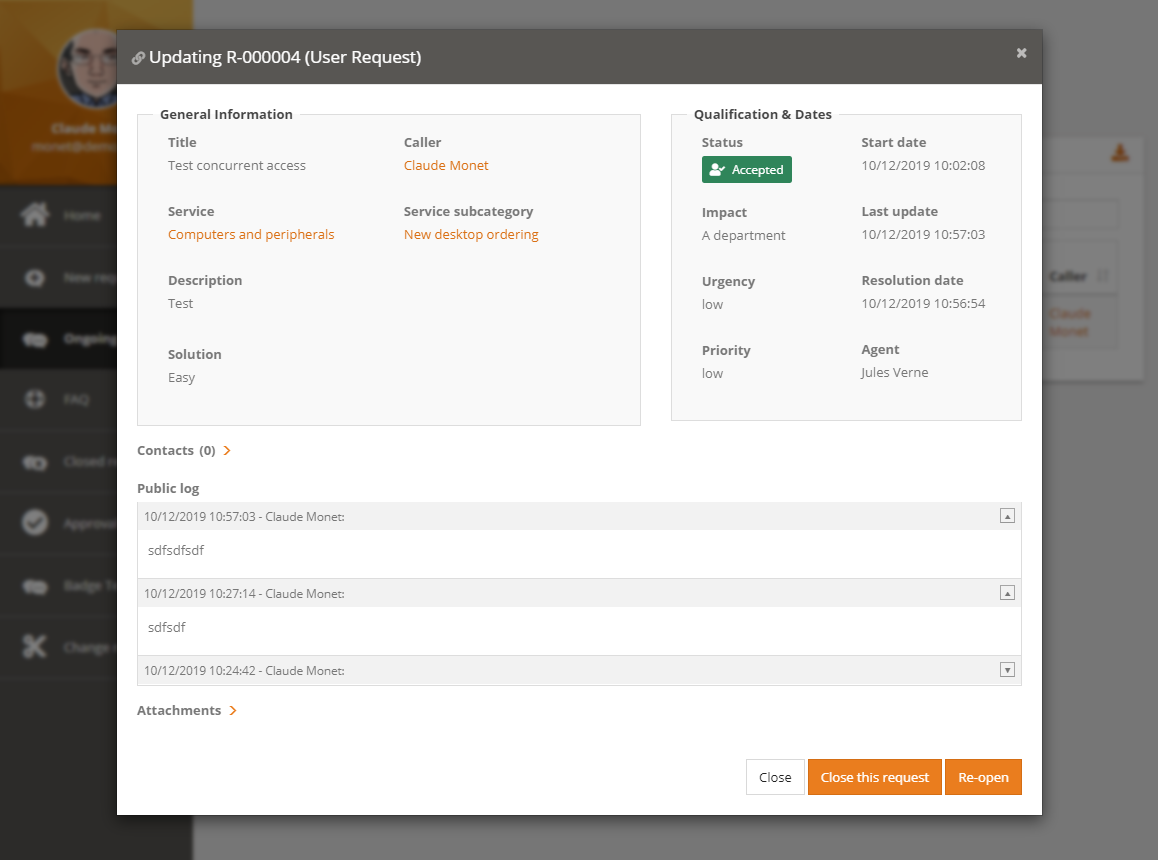

Object details:

Console screenshots

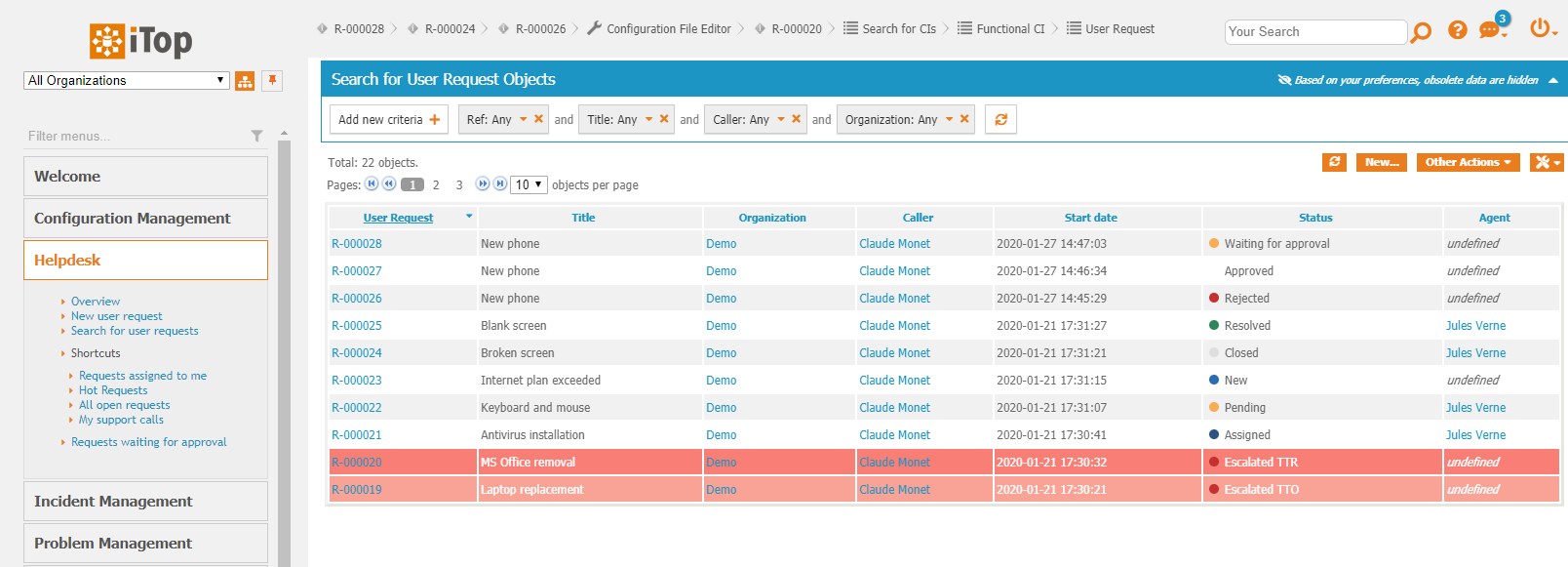

Objects list:

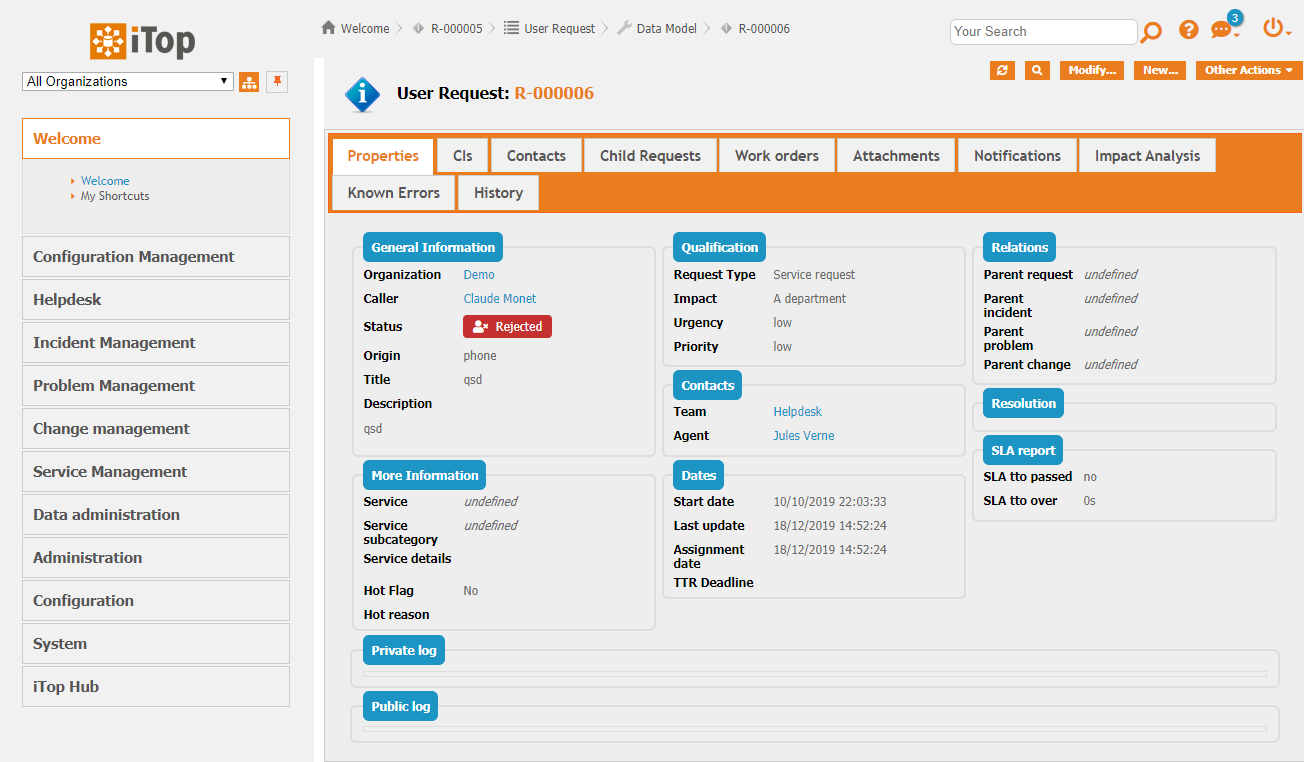

Object details:

Used colors

We based the default colors on what seems to be a general standard for UX, but of course this can be overloaded (see Question & Answers section):

Neutral states => Blue (New, assigned, re-assigned, dispatched, ...)
  Waiting states => Orange (Pending, waiting for approval)
  Success states => Green (Accepted, resolved)
  Failure states => Red (Rejected, escalated TTO/TTR)
  Frozen states => Grey (Closed)

Note: Custom states will be rendered as neutral states by default.

Questions and Answers

Question: I have custom states, how can I set their color?
Answer: To make customization easier within the ITSM Designer, you can edit the module parameters of the extension to add you states.

For example, if you have a custom state “customer_pending” for the “UserRequest” class, add the state to the module parameters and set its style like this:

<?xml version="1.0" encoding="UTF-8"?>
<itop_design xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="1.7">
    <module_parameters>
        <parameters id="combodo-attributes-visual-beautifier">
            <classes type="hash">
                <UserRequest>
                    <field_values>
                        <customer_pending _delta="define">
                            <primary_color>#EA7D1E</primary_color>
                            <secondary_color>#FFFFFF</secondary_color>
                            <icon_code>f254</icon_code>
                        </customer_pending>
                    </field_values>
                </UserRequest>
            </classes>
        </parameters>
    </module_parameters>
</itop_design>

The 3 tags are optional, if not defined the value from the <default_style> of the class will be taken.

  • primary_color: Used as background in the details, used as the dot color in lists.
  • secondary_color: Used as text / icon color in the details, not used in the lists.
  • icon_code: Code of the FontAwesome icon to display in the details. See next question more information.

Tips:

  • For re-using colors from the existing states, use the variables below.
  • For good color palette example, check TailWind.

Color variables from existing states:

$state-neutral-primary-color
$state-neutral-secondary-color
$state-waiting-primary-color
$state-waiting-secondary-color
$state-success-primary-color
$state-success-secondary-color
$state-failure-primary-color
$state-failure-secondary-color
$state-frozen-primary-color
$state-frozen-secondary-color

$status-active-primary-color
$status-active-secondary-color
$status-inactive-primary-color
$status-inactive-secondary-color

Question: Where can I found icons to set on some states?
Answer: The extension supports any icons from the Font Awesome 5 Free collection.

  • To set a icon, first browse the collection to find one you like.
  • Then, copy the “icon code” (it's a 4-character code).

  • Finally, add it to your XML.
<?xml version="1.0" encoding="UTF-8"?>
<itop_design xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="1.7">
    <module_parameters>
        <parameters id="combodo-attributes-visual-beautifier">
            <classes type="hash">
                <UserRequest>
                    <field_values>
                        <dispatched>
                            <icon_code _delta="force">f0c0</icon_code>
                        </dispatched>
                    </field_values>
                </UserRequest>
            </classes>
        </parameters>
    </module_parameters>
</itop_design>

Question: Can this highlighting be limited to the Console or the Portal?
Answer: Yes

itop_design / module_parameters
   <parameters id="combodo-attributes-visual-beautifier">
       <disabled_portals>
           <portal id="itop-portal" _delta="define">itop-portal</portal>
       </disabled_portals>
   </parameters>

Here is how to remove the highlighting from the console, and keep it on all other portals

itop_design / module_parameters
   <parameters id="combodo-attributes-visual-beautifier">
       <disabled_portals type="array" _delta="redefine">
           <portal id="backoffice">backoffice</portal>
       </disabled_portals>
   </parameters>
The id of the portal can be whatever you want, it's just easier to use the portal code.

Question: How can I apply this highlighting to Change?
Answer: Just use this module parameters

itop_design / module_parameters
<parameters id="combodo-attributes-visual-beautifier" _delta="must_exist">
      <classes type="hash">
        <Change _delta="define">
          <default_style>
            <primary_color>$state-neutral-primary-color</primary_color>
            <secondary_color>$state-neutral-secondary-color</secondary_color>
          </default_style>
          <field_code>status</field_code>
          <field_values type="hash">
            <approved>
              <primary_color>$state-success-primary-color</primary_color>
              <secondary_color>$state-success-secondary-color</secondary_color>
              <icon_code>f4fc</icon_code>
            </approved>
            <assigned>
              <primary_color>$state-neutral-primary-color</primary_color>
              <secondary_color>$state-neutral-secondary-color</secondary_color>
            </assigned>
            <closed>
              <primary_color>$state-frozen-primary-color</primary_color>
              <secondary_color>$state-frozen-secondary-color</secondary_color>
            </closed>
            <implemented>
              <primary_color>$state-success-primary-color</primary_color>
              <secondary_color>$state-success-secondary-color</secondary_color>
              <icon_code>f00c</icon_code>
            </implemented>
            <monitored>
              <primary_color>$state-success-primary-color</primary_color>
              <secondary_color>$state-success-secondary-color</secondary_color>
              <icon_code>f00c</icon_code>
            </monitored>
            <new>
              <primary_color>$state-neutral-primary-color</primary_color>
              <secondary_color>$state-neutral-secondary-color</secondary_color>
            </new>
            <notapproved>
              <primary_color>$state-failure-primary-color</primary_color>
              <secondary_color>$state-failure-secondary-color</secondary_color>
              <icon_code>f235</icon_code>
            </notapproved>
            <plannedscheduled>
              <primary_color>$state-waiting-primary-color</primary_color>
              <secondary_color>$state-waiting-secondary-color</secondary_color>
              <icon_code>f252</icon_code>
            </plannedscheduled>
            <rejected>
              <primary_color>$state-failure-primary-color</primary_color>
              <secondary_color>$state-failure-secondary-color</secondary_color>
              <icon_code>f235</icon_code>
            </rejected>
            <validated>
              <primary_color>$state-success-primary-color</primary_color>
              <secondary_color>$state-success-secondary-color</secondary_color>
              <icon_code>f4fc</icon_code>
            </validated>
          </field_values>
        </Change>
      </classes>
    </parameters>
