Rest API Playground

User friendly interface that eases iTop CMDB adoption and API Rest use.

A little bit like POSTMAN, this extension proposes a set of Rest endpoint examples (GET/DELETE/UPDATE/…) in dedicated tabs. The examples are directly generated based on your iTop data.

At first you have to select a class among UserRequest / Person /Server

Then you can deed dive in each endpoint tab where you have:

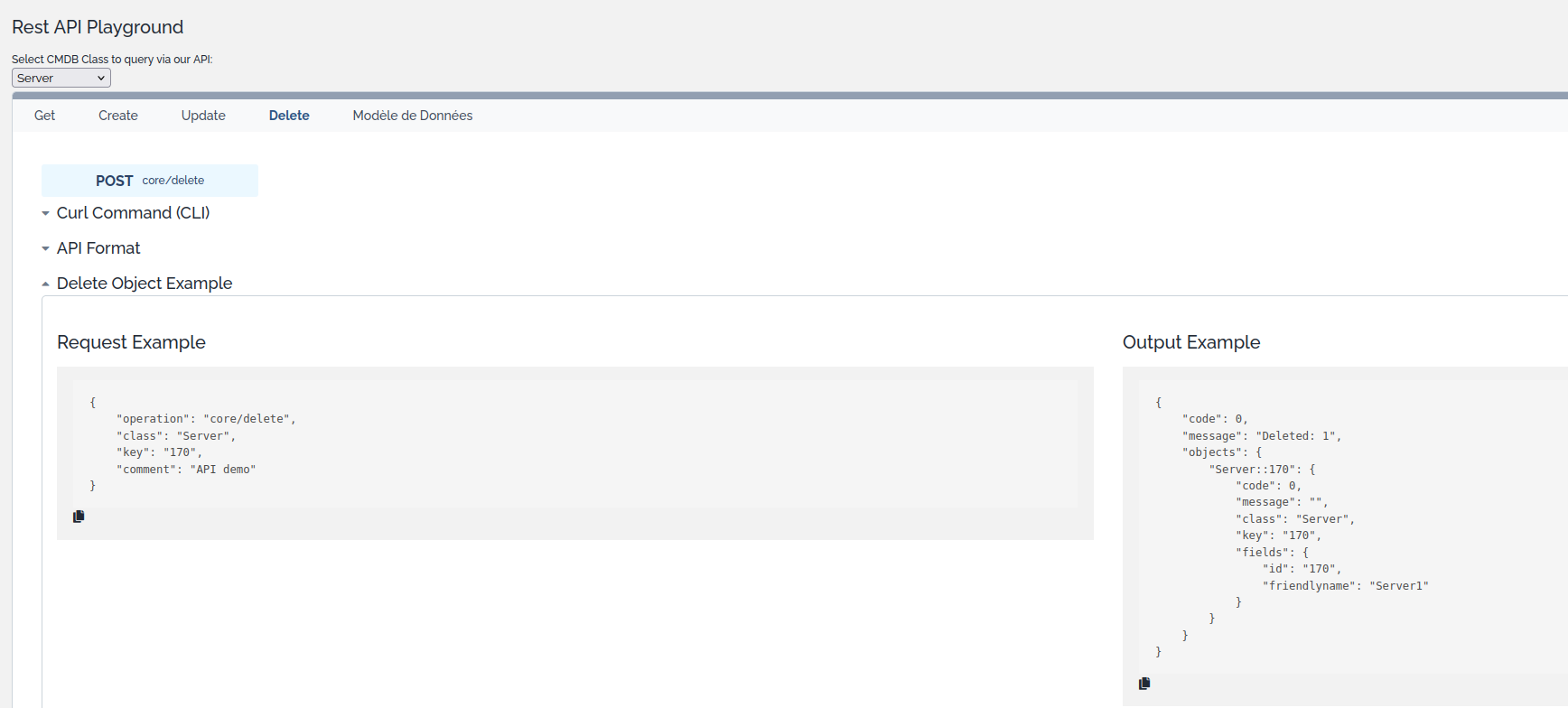

• request/response field doc
• further different examples of request/responses with your live data
• a CURL CLI command to copy-paste

A last tab shows the selected class datamodel view to quickly understand iTop abstraction and link it to the Rest API.

Classes to select are limited (if they exist) to UserRequest / Person /Server.

iTop 3.0 min

as usual

The extension demonstrates how the REST APIs function independently of authentication. No configuration of REST or token authentication is required, nor is it necessary to assign the REST Profile to any user.

The data that is displayed will automatically respect the authorizations of the connected user (i.e., the silos, data, and classes that the user is allowed to view).

The datamodel view is displayed - as a specific “Datamodel” tab - on all iTop objects. You can hide this tab but keep it only in the “REST API” page by setting the following configuration parameter:

$MyModuleSettings = array(
        'combodo-datamodel-helper' => array (
                'objecttab-enabled' => false,
        ),

This tab contains further different ways of calling same API. This is based with OQL language. Further sections include also input/output documentation.

This tab is available only when selecting classes that have lifecycles like UserRequest.

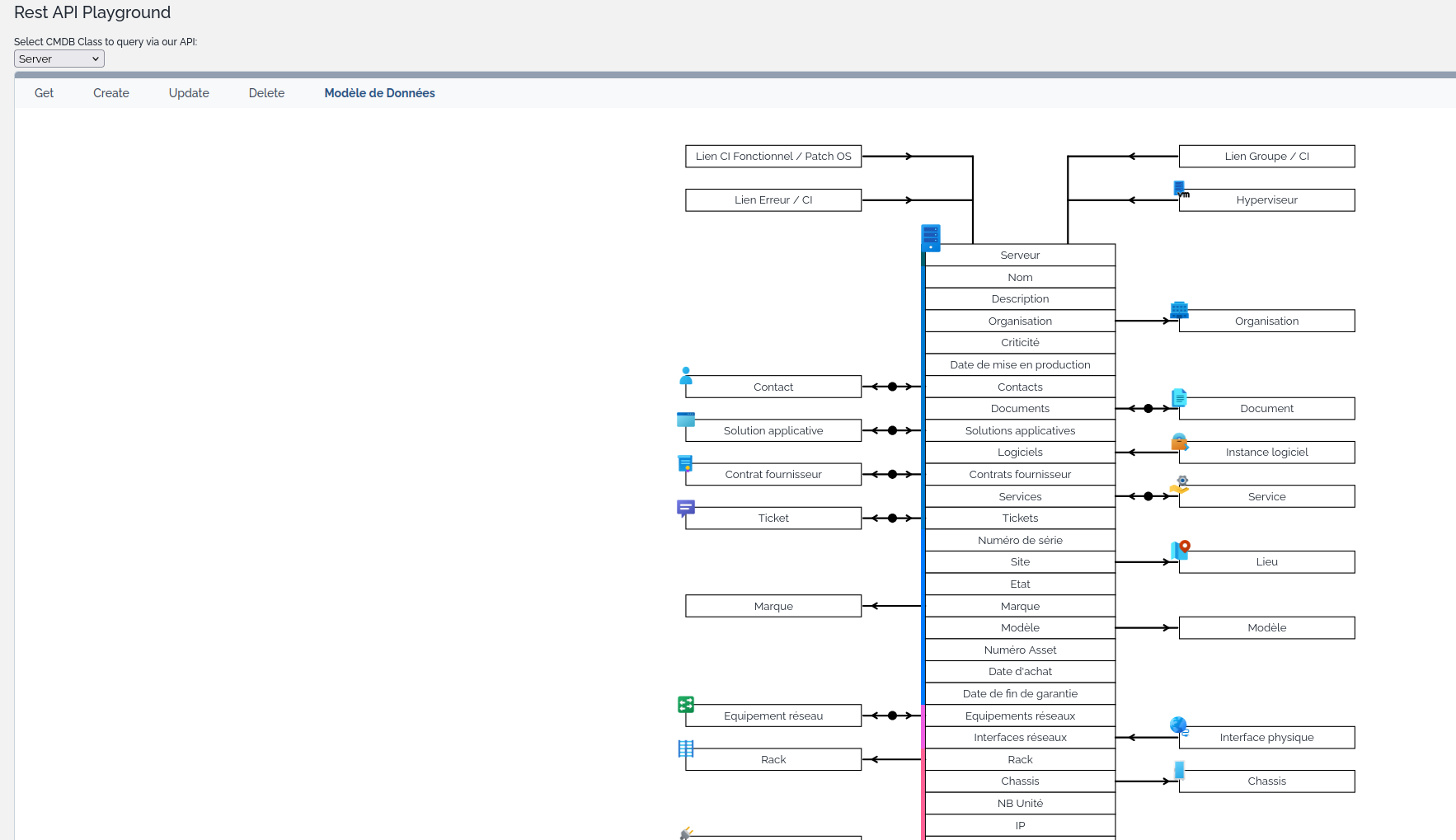

This tab illustrates iTop object abstraction. it describes all objects/fields and other possible values.
