Data collector for Proxmox

This stand-alone application enables administrators to automatically feed iTop with relevant and accurate information from their Proxmox infrastructure. It must be used with the Data model for Proxmox that brings dedicated Proxmox elements to iTop's CMDB.

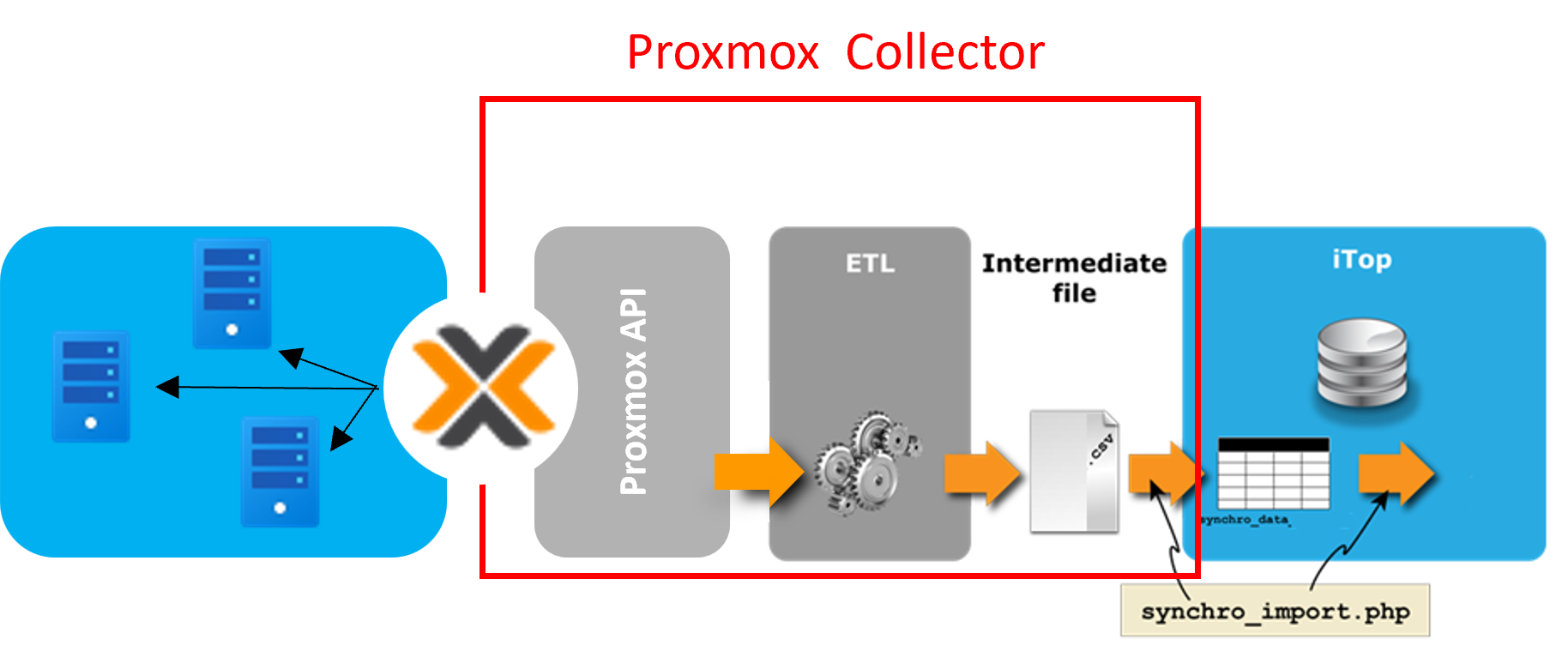

The Data collector for Proxmox is a stand-alone PHP software that extracts information about a set of configuration items (CIs) from the Proxmox infrastructure and synchronizes it with the iTop's CMDB.

• Collection of CI informations is done through Proxmox standard web services,
• Synchronization follows iTop's built-in Data Synchronization mechanism.

The collector currently focuses on the following classes of objects, for which collection can be activated or deactivated on an individual basis:

• OS Family
• OS Version
• Proxmox Cluster
• Proxmox HA Group
• Proxmox Node / Serveur
• Physical Interface
• Proxmox Disk
• Proxmox Storage Type
• Proxmox Storage
• Virtual machine
• Proxmox Container
• Logical Interface
• IPv4 Address - Requires TeemIP / IPAM for iTop extension
• IPv6 Address - Requires TeemIP / IPAM for iTop extension
• Link Logical Interface / P address - Requires TeemIP / IPAM for iTop extension

The collection mechanism can be extended.

None

Usage of the collector requires you to comply with a few points:

• An access to the Proxmox web services API must be granted,
• An access to the iTop web services API must be granted as well,
• The Proxmox objects synchronized by the collector must exist in iTop as CMDB CIs:
  • For that purpose the Data model for Proxmox extension must be installed on iTop,
  • IPv4 and IPv6 Addresses do need TeemIP / IPAM for iTop,
• From a system standpoint:
  • You'll need to comply with the requirements expressed in the Data collector Base documentation.
  • PHP version should be 8.1, 8.2 or 8.3.

Simply expand the content of the zip archive into a folder on the machine where the collector will be run.

The configuration of the application is built by concatenating 4 files:

1. conf/params.distrib.xml that is provided by the collector framework, Data collector Base. It should not be modified.
2. collectors/params.distrib.xml that holds the entries that are specific to the Data collector for Proxmox. It should not be modified.
3. collectors/extensions/params.distrib.xml that holds entries that have been created and added by the customer to answer its specific needs. This file is optional.
4. conf/params.local.xml where the collector can be adapted to the specific customer needs.

The collectors/params.distrib.xml configuration file contains parameters that must (for some) or can (for others) be changed when configuring the collector, which is done via the conf/params.local.xml file.

<?xml version="1.0" encoding="UTF-8"?><!-- Default values for parameters. Do NOT alter this file, use params.local.xml instead -->
<parameters>
        <!-- Connection parameters -->
        ...
           List of parameters to connect to the remote Proxmox application
        ...

        <!-- Proxmox classes parameters -->
        ...
           List of Proxmox classes with their parameters
        ...

        <!-- Class collection sequence -->
        ...
           List of classes to collect with the rank in the collection process
        ...

        <!-- Global parameters -->
        ...
           List of parameters that are global to the collector
        ...

        <!-- Data synchronization parameters -->
        ...
           Placeholders for the synchro data sources
        ...

        <!-- Mapping tables -->
        ...
           Set of mapping tables
        ...

</parameters>

The collectors/extensions/params.distrib.xml configuration file contains the parameters used to collect additional classes required by a customer.

<?xml version="1.0" encoding="UTF-8"?><!-- Default values for parameters. Do NOT alter this file, use params.local.xml instead -->
<parameters>
        <!-- Additional Proxmox classes parameters  -->
        ...
           List of additional classes to collect
        ...

        <!-- Class collection sequence -->
        ...
           List of additional classes to collect with the rank in the collection process
        ...

</parameters>

This set of parameters is required to connect to the iTop application or the Proxmox environment. Some of them must or may be adapted to meet customers' own environment.

In addition to the connection parameters described above, the collectors/params.distrib.xml file provides the list of all Proxmox classes that need to be discovered together with their subset of parameters that should be synchronized within iTop. Since Proxmox data retrieval is performed in JSON format, this list must be aligned with the requirements expected by the standard JSON collector defined in the data collector base.

Looking, for instance, at the Virtual Machine class, we have:

    <!-- Virtual machines -->
    <itopvirtualmachineproxmoxcollector>
        <jsonfile>$jsonfile_path$/ProxmoxVirtualMachine.json</jsonfile>
        <path>data</path>
        <fields>
            <primary_key>id</primary_key>
            <business_criticity>business_criticity</business_criticity>
            <cores_per_socket>cores_per_socket</cores_per_socket>
            <cpu>cpu</cpu>
            <cpu_model>cpu_model</cpu_model>
            <description>description</description>
            <host_id>node</host_id>
            <logicalvolumes_list></logicalvolumes_list>
            <managementip>managementip</managementip>
            <managementip_id>managementip</managementip_id>
            <name>name</name>
            <numa>numa</numa>
            <org_id>org_id</org_id>
            <osfamily_id>ostype</osfamily_id>
            <osversion_id>ostype</osversion_id>
            <power_state>power_state</power_state>
            <proxmoxhagroup_id>hagroup</proxmoxhagroup_id>
            <ram>memory</ram>
            <socket_count>socket_count</socket_count>
            <status>status</status>
            <uuid>vmid</uuid>
        </fields>
        <defaults>
            <business_criticity>medium</business_criticity>
            <logicalvolumes_list></logicalvolumes_list>
            <org_id>Demo</org_id>
            <status>production</status>
        </defaults>
    </itopvirtualmachineproxmoxcollector>

The list defined within the <fields> section must comply with the following syntax: <itop_attribute_name>proxmox_attribute_name</itop_attribute_name>

With:

• The XML tag defines the exact name of an iTop attribute for the class, such as host_id, org_id, or uuid in the example above.
• The value contained in the XML tag defines the name of the attribute in the Proxmox environment.

This section defines the list of classes that will be collected and in which order. It also allows you to disable the collection of a class.

  <collectors_launch_sequence type="array">
    <!-- OS Families -->
    <collector>
        <name>iTopOSFamilyProxmoxCollector</name>
        <enable>yes</enable>
        <rank>1</rank>
    </collector>
    <!-- OS Versions -->
    <collector>
        <name>iTopOSVersionProxmoxCollector</name>
        <enable>yes</enable>
        <rank>2</rank>
    </collector>
    <!-- IPv4 Addresses -->
    <collector>
        <name>iTopIPv4AddressProxmoxCollector</name>
        <enable>yes</enable>
        <rank>3</rank>
    </collector>
    <!-- IPv6 Addresses -->
    <collector>
        <name>iTopIPv6AddressProxmoxCollector</name>
        <enable>yes</enable>
        <rank>4</rank>
    </collector>
    <collector>
        <name>iTopProxmoxStorageTypeProxmoxCollector</name>
        <enable>yes</enable>
        <rank>4</rank>
    </collector>
    <!-- ProxmoxClusters -->
    <collector>
        <name>iTopProxmoxClusterProxmoxCollector</name>
        <enable>yes</enable>
        <rank>10</rank>
    </collector>
    ...
  </collectors_launch_sequence>

This section contains some settings that are global to the application.

<?xml version="1.0" encoding="UTF-8"?>
  <parameters>
    ...
    <jsonfile_path>/var/www/html/dev/collectors/proxmox/proxmox-collector/data</jsonfile_path>
    <manage_ipv6>no</manage_ipv6>
    ...
  </parameters>

These are dedicated to the synchronization data sources that the collector creates. Some of them must or may be adapted to meet customers' own environment.

This section groups the mapping tables used by the collector.

Should you require further details on how mapping tables should be built and use, please refer to the Data mapping chapter of the Data collector Base documentation.

The launch of the Proxmox collector will be driven by the command and parameters defined in the usage section of iTop Data collector base. Once launched:

1. The configuration files are consolidated.
2. The collection plan is built, based on the list of classes that have been enabled in the configuration file.
3. Synchronisation data sources are created or updated if required.
4. The collector authenticates and connects to Proxmox, retrieves all the required data from it and stores it in the ProxmoxData.json file under the <collector>/data directory.
5. For each of the classes that should be collected, a dedicated json file is built from the data extracted from Proxmox.
6. The collector then builds csv files with all the data that are required in iTop.
7. Synchronisation runs and the Proxmox objects are pushed to iTop where they will be created or updated.
