Attribute TagSet

Display of a TagSet attribute

What does it look like within the details of an objet:

You're not sure about the exact meaning of a tag, just move your mouse over it:

If you click on the Tag, it will give you all the FAQs that do have this particular tag.

Search on a TagSet attribute

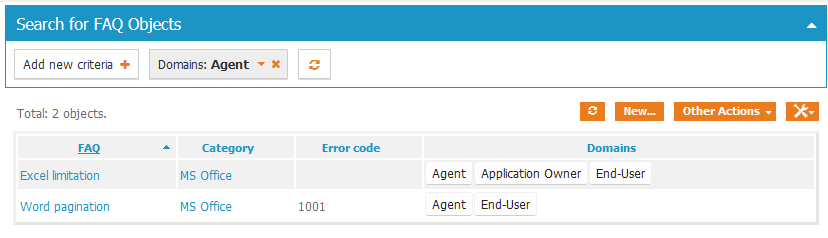

Searching for FAQs having Agent Tag:

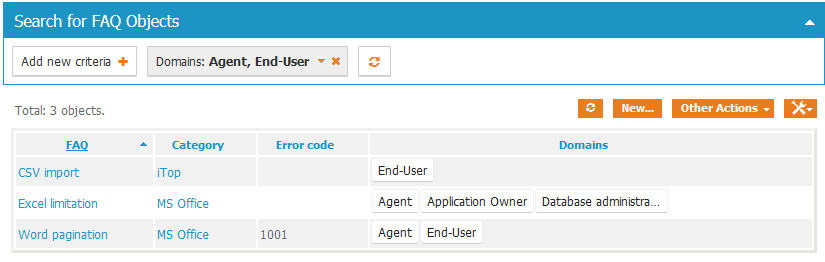

Searching for FAQs having End-User or Agent Tag:

Searching for FAQs having End-User and Agent Tag:

OQL syntax for TagSet

Assuming you have 2 domains with code agent and enduser, and some FAQs with those tags:
You can search for FAQs having either one or the other of those 2 tags:

  SELECT FAQ WHERE domains MATCHES 'agent enduser'

You can search for FAQs having both tags:

  SELECT FAQ WHERE domains MATCHES 'agent' AND domains MATCHES 'enduser'

Edition of a TagSet attribute

Add a Tag

If you have a small number of possible tags, they are listed in the drop-down

If you enter some text, the list of selectable values is filtered to those containing your text

If you have a single value listed, pressing the key enter does add it to your tags

There is a maximum number of tags which can be set on an object.
When you reached the maximum number of tags allowed, then the list of possible values is not displayed so you can no more add a value. If after you've reached the limit, you remove a tag, then the list of possible values is displayed again.

Remove a Tag

If you have at least one selected tag and put the cursor in that field: pressing the key back will remove the last tag.

If you click on the x on a selected tag, it will remove that tag.

Bulk edition of TagSet

If you have bulk write right then you can add or remove Tags massively. It supports those use cases:

  • Add a Tag to a set of objects and leave the other tags unchanged on all modified objects. Adding a tag to an object which has it already, has no effect.
  • Remove a Tag from a set of objects and leave the other tags unchanged on all modified objects. Removing a tag from an object which doesn't have it, has no effect.

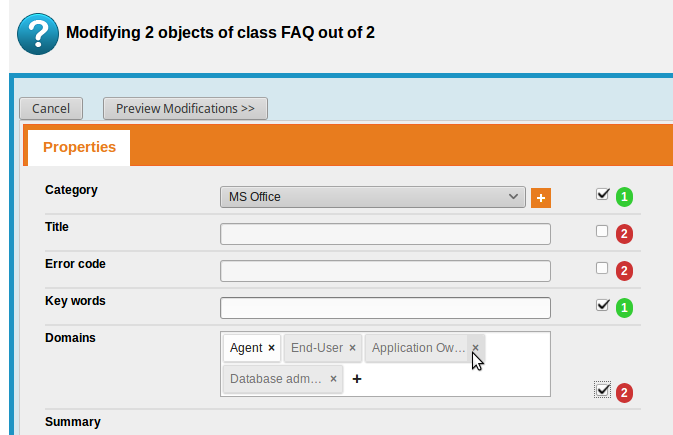

Modify a list of objects on which you want to bulk add or remove tags This is how the tags are displayed in the bulk modify edit screen:

  • The tags which are present on all objects-to-modify are displayed with a white background
  • The tags which are present on at leat one objects-to-modify are displayed with a grey background
    • If you click on a grey tag it becomes white and will be added to all objects-to-modify
    • If you leave unchanged a grey tag, it will remain on those objects who had it before and won't be added on others.
  • Tags present on none of the objects-to-modify but needing to be added, must be selected as in single object edition.
  • You can remove a tag exactly as described in the single object edition.

Export / Import

When you export objects with a TagSet attribute, the tags are exported with their label, separated by a pipe |. The same format is supported for importing data.

  • You cannot export/import the codes within the console, only the labels of the Tags
  • It can be done by administrator using Export V2 on the server, with option &no_localize=1

Manage allowed values for a Tag

Managing the proposed values for a particular TagSet attribute, is done in iTop as you managed a Typology. See the new menu under “Data administration”:

It's possible to change who can see this menu (as for any menu) and who can modify those classes, by fine-tuning the profiles using the parent class TagSetFieldData or the children classes if we want.

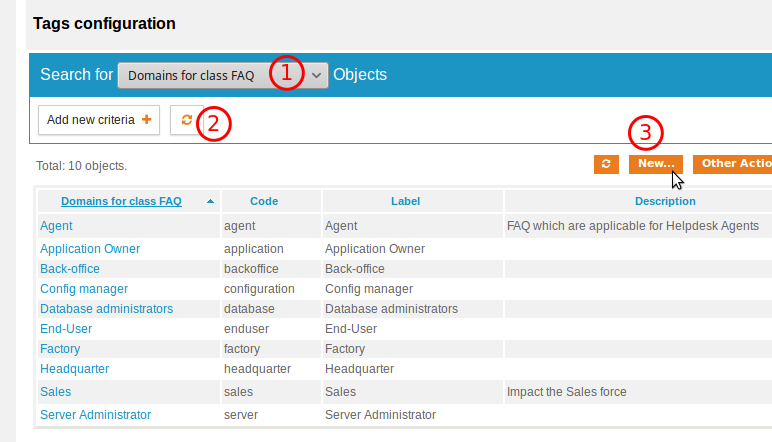

Search and create new values

  1. Select the Class/Attribute for which you want to manage the values
  2. Check existing values
  3. Create missing ones

  • code can only use numbers and letters, no other character.
  • Tags are ordered by code using alphabetic order [1..9][A..Z][a..z].
As Tag ordering is based on their code, better align code and label to make it more obvious for users
You can put emoji within a tag label, using a simple copy-paste

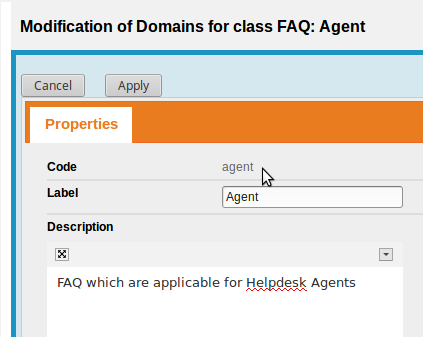

Modify an allowed value

  • If no object is using that tag value, then it can be freely modified.
  • If at least one object is using that tag, then the code cannot be changed, but label and description can.

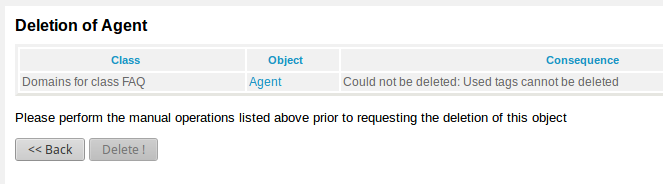

Delete an allowed value

  • If no object is using that tag value, then it can freely be deleted
  • If at least one object is using that tag, then it cannot be deleted.

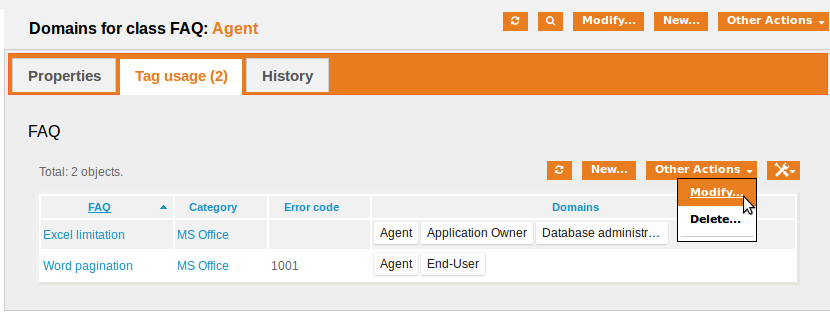

Remove first that tag from all objects using it:

  1. Click on the Tag
  2. Open the tab “Tag usage”
  3. Click on the modifiy action on the listed object
  4. Remove the Tag in the bulk edition form and submit
  5. Now you can delete the Tag, retrieved on the breadcrum

Configure a TagSet Attribute

As part of the definition of a tag, you must define

  • The maximum number of tags <max_items> allowed on a given object. This does not limit the number of available tags, which has no limit.
  • You should limit the size of a tag code for performance <tag_code_max_len>
Do not reduce <max_items> or <tag_code_max_len> on an existing TagSet with real data being above the new limits or you may lose data.
Defining an AttributeTagSet with id domains on class FAQ, create automatically a class TagSetFieldDataFor_FAQ__domains

Limitations

  • “Allowed values” cannot be localized.
  • There is no warning when a user has reached the maximum numbers of Tags allowed on an object, it just stops proposing new values
  • Extension Data Localizer was not yet tested with TagSet FIXME
  • Reducing the size of <max_items> or <tag_code_max_len> on an existing TagSet with real data being above the new limits, will lead to unpredictable results depending on your database.
